5.10.4 Customise Background



To customise User Suite Logo:

    1. Navigate to the System Tab
    2. Click the Customise User Suite icon (customise User Suite window appears – by default Customise Themes tab is opened)

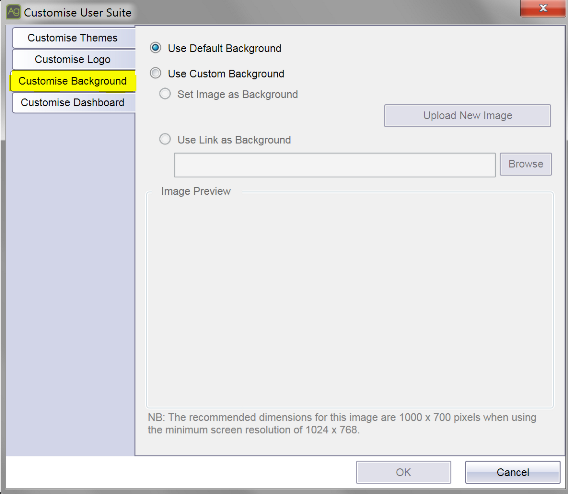

Customise User Suite Window Showing Customise Background


    1. Click the Customise Background Tab (default AgilityBMS background is used)
    2. Select Use Custom Background
    3. Set Image as Background:

      • Select Set Image as Background
      • Click Upload New Image (browse window is opened)


Note that the maximum dimension for the background image are 1000 x 700 pixels, different image size will be resized to fit.


      • Locate image file local or network drive
      • Click Open (image appears)
      • Click OK

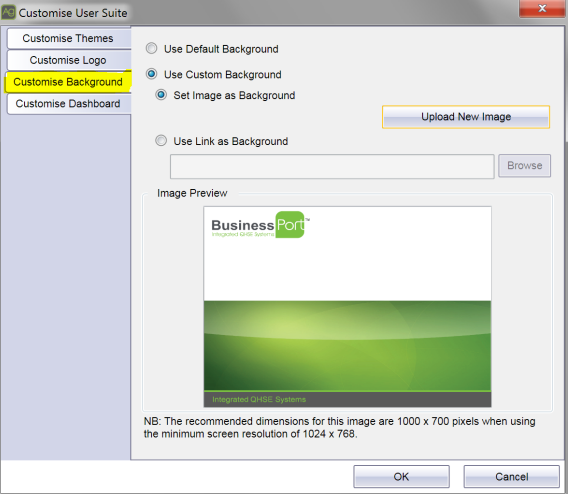

Custom Image Used as User Suite Background


      • Preview Image in the User Suite
        • Open User Suite in web browser (selected image is applied)

    1. Use Link as Background:

      • Use Link as Background

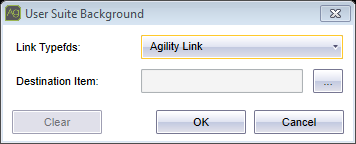

      • Click Browse (AgilityBMS links widow is appears)
      • Choose AgilityBMS Type
        • AgilityBMS Link
        • URL
        • Dynamic URL
      • Click Browse if AgilityBMS Link is selected (new query window is opened), otherwise specify URL address
      • Specify search criteria


Note that only Overview items can be used as User Suite background.


      • Click Search
      • Select required item
      • Click Select (item destination appears in AgilityBMS link window)


      • Click OK

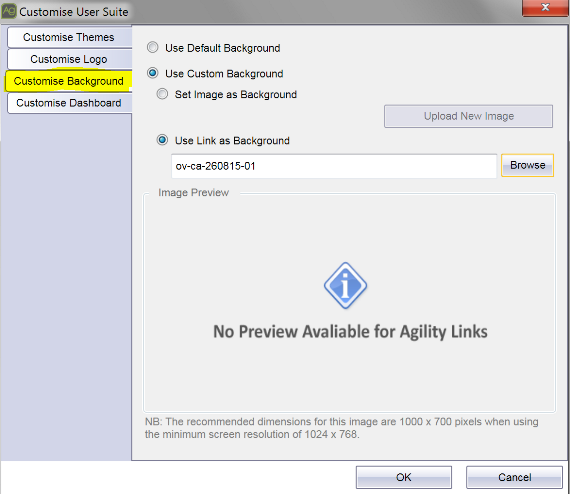

Custom AgilityBMS Link Used as User Suite Background


      • Click OK.
